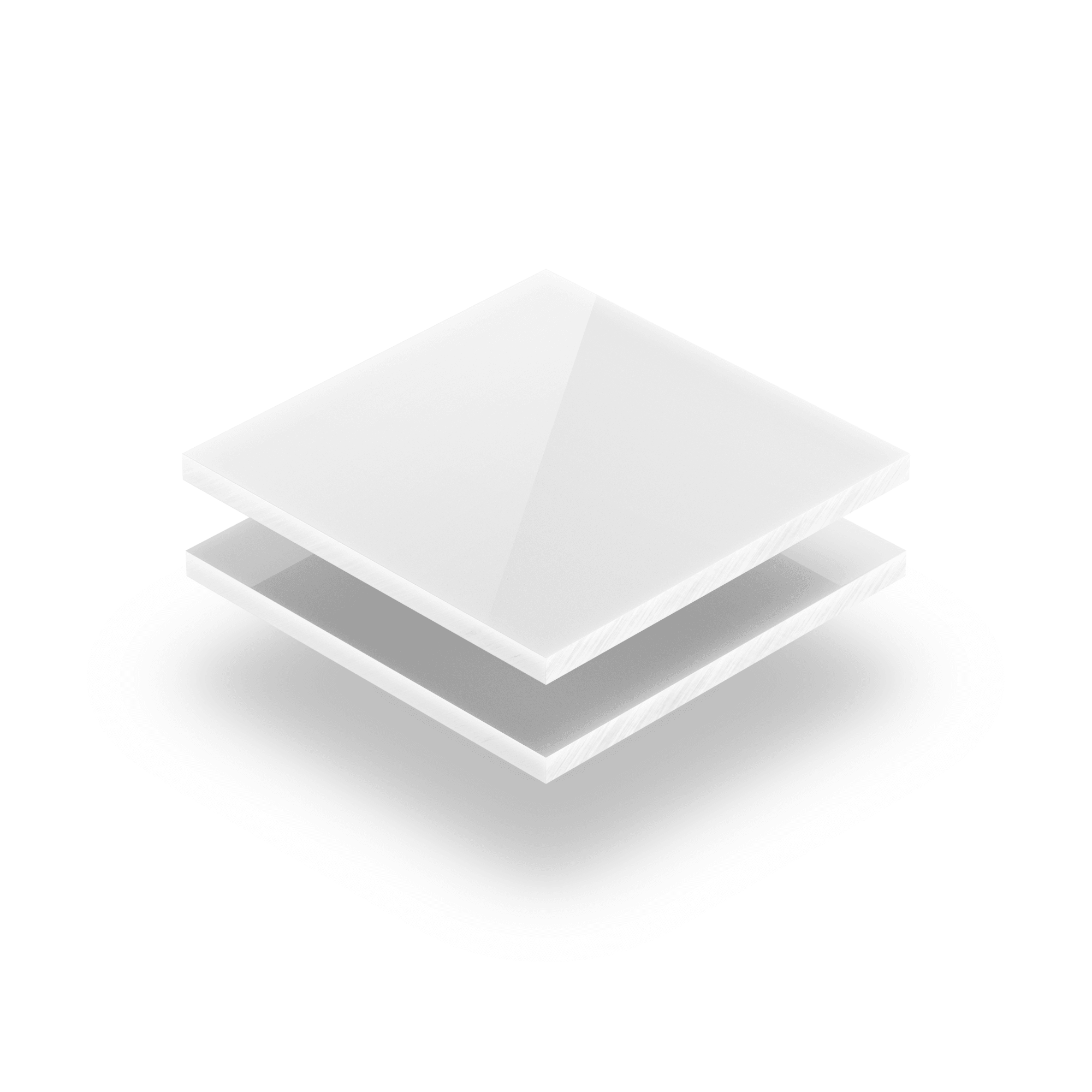

White opal extruded (XT) acrylic sheet 3 mm

White opal extruded (XT) acrylic sheet 3 mm

£ 34.93 / m² Excl. VAT

£ 41.92 / m² Incl. VAT

In stock: 500+ m2

Estimated delivery period: 27 - 31 May

Everything cut to size
Any shape you want
High quality
Wide variety

Complete your order

Need help?

Contact our customer service

0122-3976701

Unavailable

Description White opal extruded (XT) acrylic sheet 3 mm

This budget acrylic sheet in the colour white has a thickness of 3 mm. This makes this material suitable for making display cases or door canopies. You can also use it for windbreaks. Pay attention: this acrylic is difficult to process because it is an extruded acrylic sheet (XT). Do you want to be able to process the acrylic sheet without any worries? Then we recommend that you view our moulded acrylic sheets.

Specifications

This budget acrylic sheet is 28% translucent and UV resistant. This allows you to use this acrylic for both outdoor and indoor applications. The sheet has a thickness tolerance of 10 percent; this means that the thickness of the plate can actually differ from the thickness stated on this page.

Basic information
Technical specifications

Appearance Opal, Shine, Smooth, White
Environment Inside, Outside

Specific mass	gr/cm³	1,18

Mechanical properties (at 20°C)
Flexural strength	N/mm	117,7
Stretch to breakage	%	5.5
High pressure strength	N/mm²	117,7
E. Modules	N/mm²	3188
Indentation strength	J/m²	29,4
Impact resistance	KJ/m²	19,6
Tensile strength	N/mm²	73,7
Friction coefficient		0,54
Water absorption at 20°C RV 65%	%	0,26
Water absorption at 20°C RV 100%	%	0,30

Thermal properties
processing temperature (Vivat)	°C	110
Melting temperature	°C	168
Linear expansion coefficient	°C	80.10-⁶
Thermal conduction	W/(k.m)	0,19
Specific heat	KJ/(kg.K)	1,47
Maximum permissible temperature, without load	°C	70
Minimum permissible temperature, without load	°C	-40

Electrical properties
Dielectric contstant		3,5
Dielectric loss factor	tg	0,02-0,06
Breakdown voltage	kV/mm	30
Surface resistance	Ω	not measurable
Specific resistance	Ω.cm	>10 ¹³

Technical specifications

Specific mass	gr/cm³	1,18

Mechanical properties (at 20°C)
Flexural strength	N/mm	117,7
Stretch to breakage	%	5.5
High pressure strength	N/mm²	117,7
E. Modules	N/mm²	3188
Indentation strength	J/m²	29,4
Impact resistance	KJ/m²	19,6
Tensile strength	N/mm²	73,7
Friction coefficient		0,54
Water absorption at 20°C RV 65%	%	0,26
Water absorption at 20°C RV 100%	%	0,30

Thermal properties
processing temperature (Vivat)	°C	110
Melting temperature	°C	168
Linear expansion coefficient	°C	80.10-⁶
Thermal conduction	W/(k.m)	0,19
Specific heat	KJ/(kg.K)	1,47
Maximum permissible temperature, without load	°C	70
Minimum permissible temperature, without load	°C	-40

Electrical properties
Dielectric contstant		3,5
Dielectric loss factor	tg	0,02-0,06
Breakdown voltage	kV/mm	30
Surface resistance	Ω	not measurable
Specific resistance	Ω.cm	>10 ¹³

Processing options

Budget acrylic sheet – opal is made from extruded acrylic (XT). Processing is limited with this type of sheet. You can process the sheet by carefully drilling, hot bending, milling, engraving, glueing, polishing and sawing. But pay attention that the material does not tear. Do you want to be able to process the acrylic without any worries? Then we recommend that you opt for a moulded acrylic sheet. With these sheets, the risk of cracks is minimal.

Applications

The White opal extruded (XT) acrylic sheet 3 mm is very suitable for advertising and design applications, such as light boxes. In addition, opal acrylic is widely used in interior and stand construction.
