Trespa® Meteon® A05.0.0 panel 6 mm traffic white RAL 9010

Trespa® Meteon® A05.0.0 panel 6 mm traffic white RAL 9010

£ 101.84 / m² Excl. VAT
£ 122.21 / m² Incl. VAT
Total Area (sq m)
Product Price excl. VAT
On backorder
Delivery period: 15 - 21 October
  • Cut to size for FREE
  • Dispatch ready within 48h
  • High quality standard
  • Professional advice
Need help?

Contact our customer service

0122-3976701
Unavailable

Description Trespa® Meteon® A05.0.0 panel 6 mm traffic white RAL 9010

This HPL panel is 6mm thick and white RAL 9010 in colour. The structured top layer is coloured on one side and has a satin finish. In addition, the panel is UV-resistant, vandal-proof, weather-resistant and easy to clean. These properties make this material ideal for outdoor applications such as wall cladding.

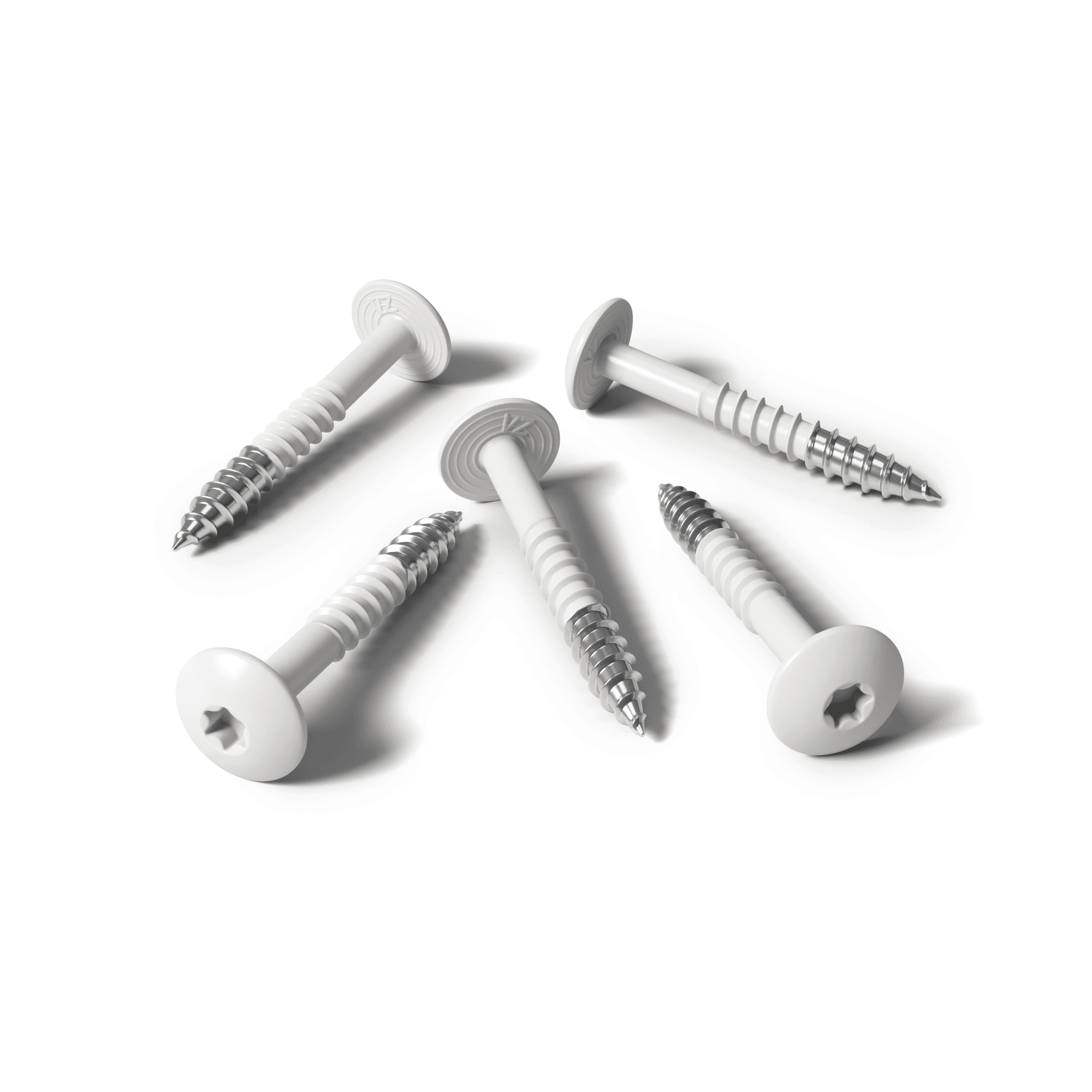

Whichever Trespa® panel you choose, we have it in stock. Have it cut to size for free and combine your order with matching screws. Have you ordered already? Then your order will be delivered to your door within 48 hours.

Specifications

Trespa® sheets have a very compact core and rock-hard synthetic top layers. This makes the panels rigid and very hard. In short, an idiot-proof and vandal-resistant sheet material. The top layers are UV-resistant and retain their appearance for more than 30 years.
Please note that Trespa® sheets are coloured on one side and have a thickness tolerance of 10%. This means that the thickness of the panel can actually deviate by about 10%.

Properties

Property Test method Property or attribute Unit Values
Thickness EN 438-2.5 Thickness mm 2,0 ≤ t <   3,0   ± 0,20
3,0 ≤ t <   5,0   ± 0,30
5,0 ≤ t <   8,0   ± 0,40
8,0 ≤ t < 12,0   ± 0,50
12,0 ≤ t < 16,0   ± 0,60
16,0 ≤ t < 20,0   ± 0,70
20,0 ≤ t < 25,0   ± 0,80
25,0 ≤ t < nader overeen te komen
Flatness EN 438-2.9 Maximum deviation mm/m 1 side decor:
2,0 ≤ t < 5,0   ± 0,50
2 side decor:
2,0 ≤ t <   6,0   ≤ 8,0
6,0 ≤ t < 10,0   ≤ 5,0
10,0 ≤ t              ≤ 3,0
Length and width EN 438-2.6 Length and width mm + 10 / 0
Straighness of edges EN 438-2.7 Maximum deviation mm/m 1,5
Squareness EN 438-2.8 Maximum deviation mm/m 1,5
Resistance to surface wear EN 438-2.10 Wear resistance Revs IP ≥ 150
Resistance to immersion in boiling water EN 438-2.12 Mass increase % CGS: 2 ≤ t < 5 ≤ 5        CGF: ≤ 7
CGS: 5 ≤ t       ≤ 2        CGF: ≤ 3
Thickness increase % CGS: 2 ≤ t < 5 ≤ 6        CGF: ≤ 9
CGS: 5 ≤ t       ≤ 2        CGF: ≤ 6
Surface appearance gloss finish Rating ≥ 3
Surface appearance other finishes ≥ 4
Edge ≥ 3
Resistance to dry heat (160 °C) EN 438-2.16 Surface appearance gloss finish Rating ≥ 3
Surface appearance other finishes Rating ≥ 4
Resistance to wet heat (100 °C) EN 438-2.18 Surface appearance gloss finish Rating ≥ 3
Surface appearance other finishes Rating ≥ 4
Stability at elevated temperatures EN 438-2.17 Cumulative dimensional change % 2 ≤ t < 5   ≤ 0,40   ≤ 0,80
% 2 ≤ t   ≤ 0,30   ≤ 0,60
Resistance to impact by large diameter fall EN 438-2.21 Drop height mm 2 ≤ t  < 6   ≥ 1.400
2 ≤ t          ≥ 1.800
Indentation diameter mm 10 mm
Resistance to crazing (thick laminates) EN 438-2.24 Appearance Rating ≥ 4
Resistance to scratching EN 438-2.25 Surface appearance smooth finishes Rating ≥ 2
Surface appearance textured finishes Rating ≥ 3
Resistance to staining EN 438-2.26 Appearance groups 1-2 Rating 5
Appearance group 3 Rating ≥ 4
Lightfastness EN 438-2.27 Contrast Grey scale rating ≥ 4
Resistance to water vapour EN 438-2.14 Surface appearance gloss finish Rating ≥ 3
Surface appearance other finishes Rating ≥ 4
Electrical resistance EN 61340-4-1 RV (23° C / 50% RH) Ohm 1×109 – 1×1011
Thermal conductivity EN 12664: 2001 W/m . °K 0,25
Coefficient of linear thermal expansion ASTM D 696 °C -1 L = 1,6 x 10-5 ca.
L = 3,5 x 10-5 ca.
Flexural strength EN ISO 178 Stress ≥ 80
Flexural modulus EN ISO 178 Stress ≥ 9.000
Density ISO 1183 Density ≥ 1,35



Test method Norm Classification CGF Classification CGS
Small flame and radiation px UNI 8457, UNI 9174, UNI 9177 Class 1 Class 1
Spread of flame BS 476-7 Class 1 Class 2
Fire rating DIN 4102-1 B1 B2
Epiradiatore NF P 92-501 M1 /
Fire behaviour of materials and components EN 45545-2: 2013 2 ≤ t < 25 mm    HL1 – HL2 – HL3 5 ≤ t ≤ 25 mm    HL1 – HL2
Reaction to fire EN 13501-1 2 ≤ t < 6 mm    B-s2,d0    t ≥ 6 mm B-s1,d0 t ≥ 4 mm D-s2,d0    t ≥ 6 mm C-s2,d0    t ≥ 12 mm B-s1,d0

Product uses

  • Chemically resistant
  • Heat resistant
  • Moisture-proof
  • UV resistant
  • Vandal-proof

Processing options

With the right cutting tools, you can saw, mill and drill the Trespa® Meteon® panels. These panels can also be screwed or glued. For glueing, we recommend the quality products from the Bostik brand.

  • Drilling
  • Engraving
  • Glueing
  • Lettering
  • Milling
  • Painting
  • Sawing (circular saw)
  • Sawing (jigsaw)
  • Bending (cold)
  • Bending (warm)
  • Cutting
  • Lasering
  • Polishing
  • Turning
  • Water cutting
  • Welding

Applications

Trespa® Meteon® is the product line for wall cladding and outdoor applications.

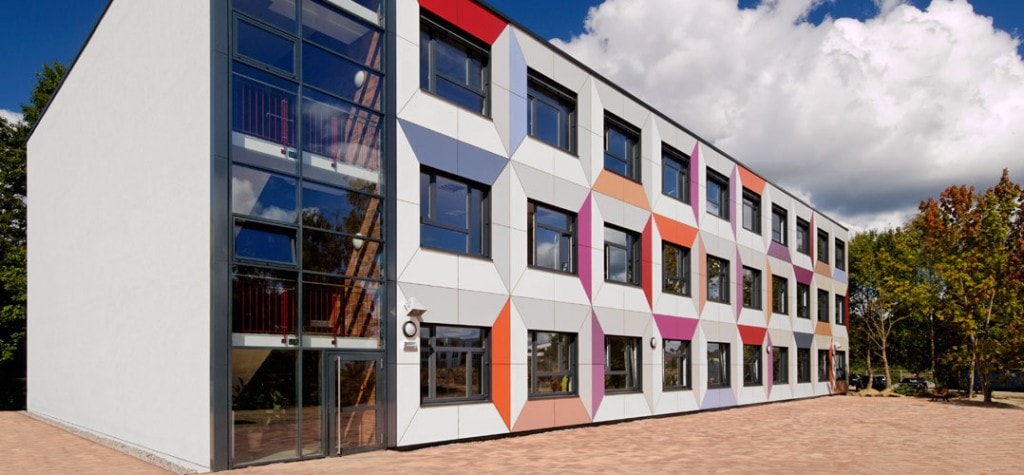

The material is completely weather-resistant and impervious to moisture. You often encounter Trespa® plates in Bilboards and Exterior cladding.

Frequently Asked Questions

  • The quality of our own brand and the Trespa® HPL plates is almost the same. The biggest difference is in the diversity of the product range. Trespa® offers more choice in terms of designs and finishing options. Furthermore, our own brand HPL plates have a harder top layer than the HPL plates of the Trespa® brand.
  • Trespa® Meteon® has been developed for complete wall cladding. Trespa® Izeon®, on the other hand, is intended for simpler façade finishes.

Are you wondering whether the Trespa® Meteon® A05.0.0 panel 6 mm traffic white RAL 9010 is suitable for your project? Then order a sample. Then you can take your time to consider it, without having to order a whole sheet.
