Polycarbonate is a sturdy, hard and transparent material. This polycarbonate sheet is 3mm thick and transparent in colour. This material is often used as a substitute for glass because it is just as clear and 250 times stronger. Add to that its self-extinguishing and fire-retardant properties and you have the perfect material for safety glazing. On delivery, they are provided with protective film on both sides. We saw the polycarbonate sheet for you for free.

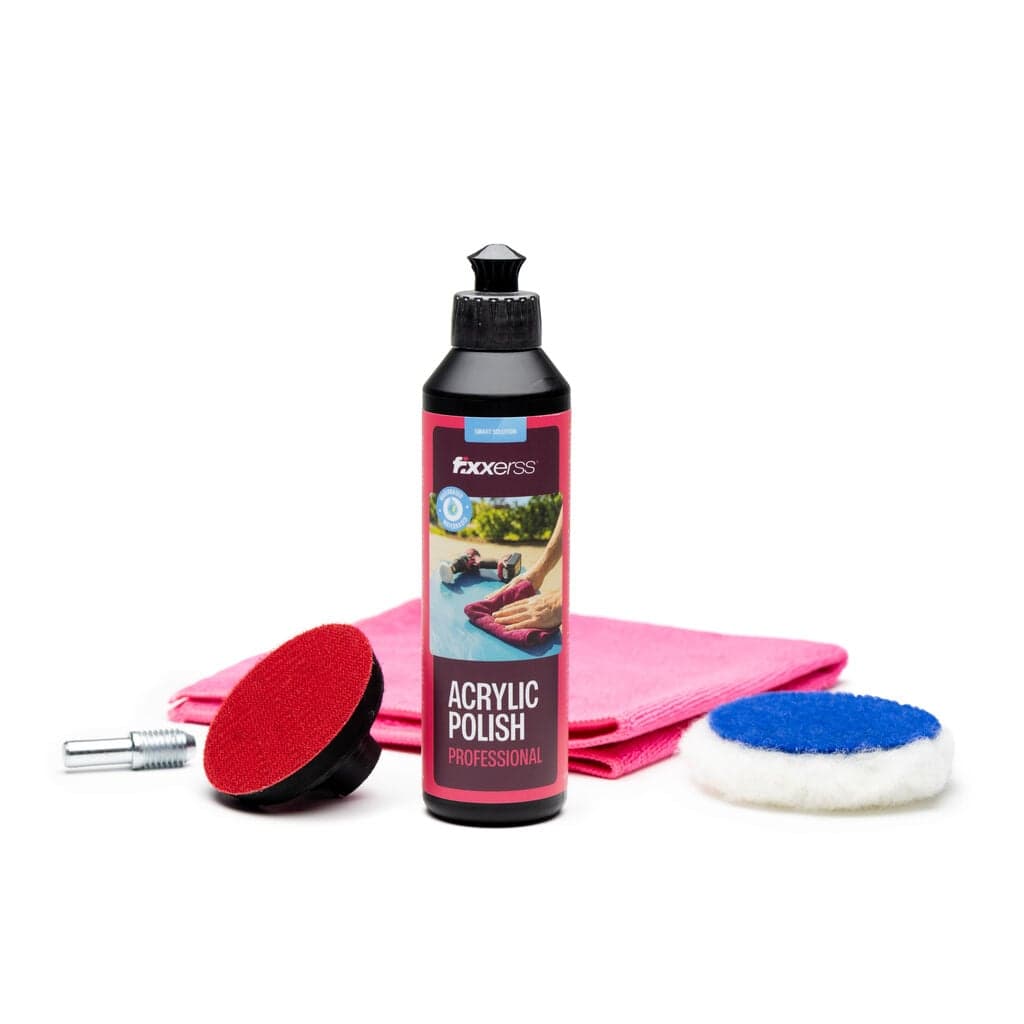

Clear polycarbonate sheets are extremely resistant to high temperatures and UV radiation. The sheets do not yellow in the sun; this makes this material very suitable for outdoor applications. Clear polycarbonate is a bit more scratch-sensitive than glass. We therefore recommend that you polish the sheets to maintain clarity. Do you want to keep them clean and dust-free for a long time? Then clean the plates with an anti-static cleaner.
| Specific mass | gr/cm3 | 1,2 |
| Mechanical properties (at 20°C) | ||
| Flexural strength | N/mm | 68,7 |
| Stretch to breakage | % | >110 |
| High pressure strength | N/mm2 | 78,5 |
| E. Modules | N/mm2 | 2256,0 |
| Indentation strength | J/m2 | 392,4 |
| Impact resistance | KJ/m2 | No breakage |
| Tensile strength | N/mm2 | 68,7 |
| Friction coefficient | 0,6 | |
| Water absorption at 20°C RV 65% | % | 0,2 |
| Water absorption at 20°C RV 100% | % | 0,4 |
| Thermal properties | ||
| processing temperature (Vivat) | °C | 170,0 |
| Melting temperature | °C | 170,0 |
| Linear expansion coefficient | °C | 67.10-6 |
| Thermal conduction | W/(k.m) | 0,2 |
| Specific heat | KJ/(kg.K) | I,17 |
| Maximum permissible temperature, without load | °C | 130,0 |
| Minimum permissible temperature, without load | °C | -100 |
| Electrical properties | ||
| Dielectric contstant | 3,0 | |
| Dielectric loss factor | tg | 0,0009 |
| Breakdown voltage | kV/mm | 35 |
| Surface resistance | Ω | >10 15 |
| Specific resistance | Ω.cm | 10 14 |
This super sturdy polycarbonate sheet is easy to machine. You can drill, saw, mill, rotate, engrave, glue, polish and bend the material on the fold line without tearing it. This sheet is 3 mm thick.
Clear polycarbonate sheets are regularly used as glazing for locations vulnerable to vandalism and burglary such as bus shelters, bicycle sheds and waiting areas. You can also use this material as a replacement for caravan, boat and car windows.
