Tinted acrylic sheet red 3 mm

Tinted acrylic sheet red 3 mm

£ 46.68 / m² Excl. VAT
£ 56.02 / m² Incl. VAT
Total Area (sq m)
Product Price excl. VAT
In stock
Delivery period: 1 - 7 October
  • Cut to size for FREE
  • Dispatch ready within 48h
  • High quality standard
  • Professional advice
Need help?

Contact our customer service

0122-3976701
Unavailable

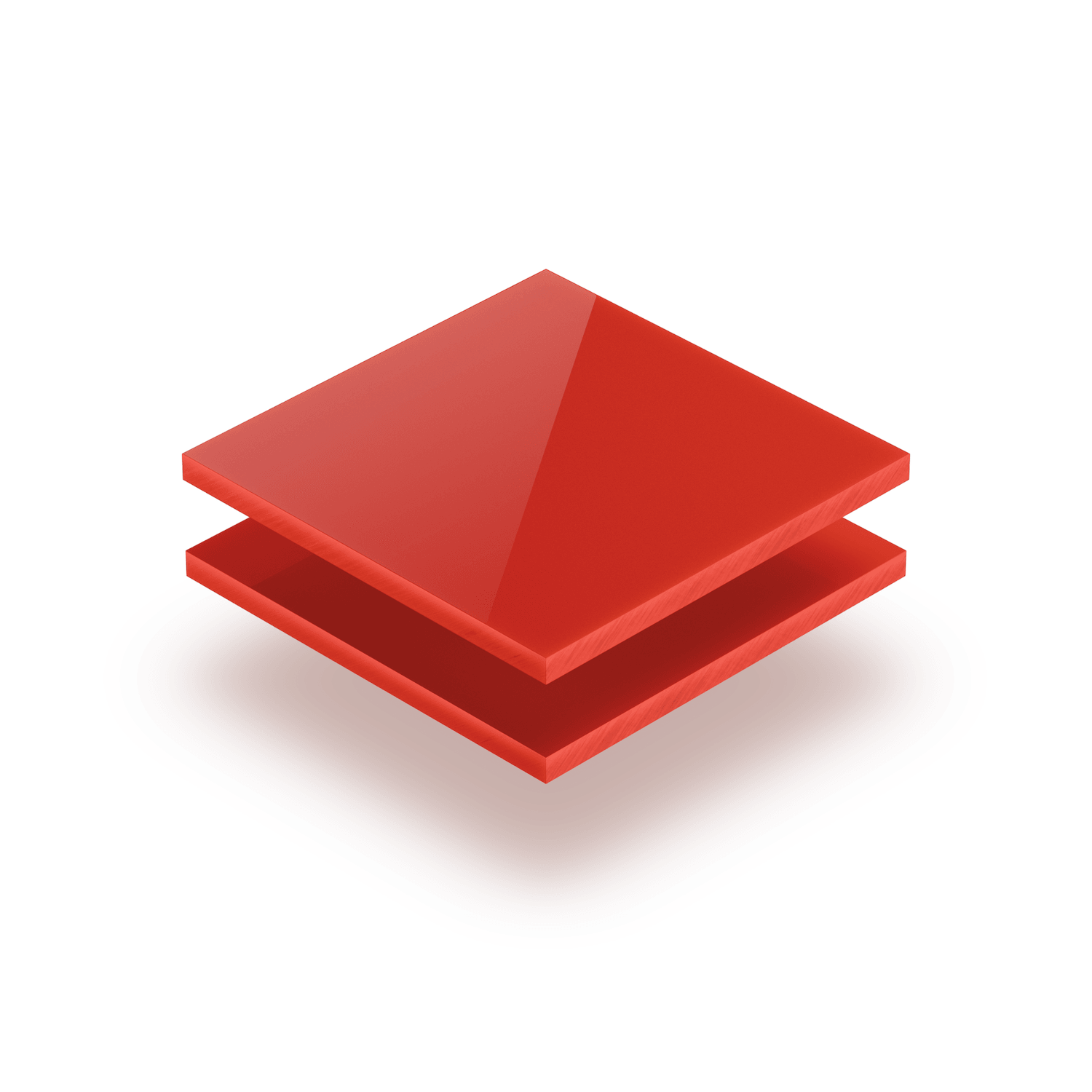

Description Tinted acrylic sheet red 3 mm

This acrylic sheet is tinted and has a thickness of 3 mm.
Thanks to its good UV-resistant qualities, this sheet can be used both indoors and outdoors. The coloured acrylic sheet can be used as display cases, kitchen splashbacks or nameplates.

Specifications

These red coloured acrylic sheets are not only thirty times stronger than glass, but also half as light. The sheets are supplied with a protective film on both sides and are sawn to the required size for free. When ordering the acrylic sheets, bear in mind a thickness tolerance of 10%. This means that the thickness of the sheet can deviate by 10%.

Properties

Specific mass gr/cm3 1,18
Mechanical properties (at 20°C)
Flexural strength N/mm 117,72
Stretch to breakage % 3,5
High pressure strength N/mm2 117,7
E. Modules N/mm2 3188
Indentation strength J/m2 39,24
Impact resistance KJ/m2 24,53
Tensile strength N/mm2 73,7
Friction coefficient 0,54
Water absorption at 20°C RV 65% % 0,25
Water absorption at 20°C RV 100% % 0,36
Thermal properties
processing temperature (Vivat) °C 105
Melting temperature °C 180
Linear expansion coefficient °C 70.10-6
Thermal conduction W/(k.m) 0,186
Specific heat KJ/(kg.K) 1,47
Maximum permissible temperature, without load °C 70
Minimum permissible temperature, without load °C -20
Electrical properties
Dielectric contstant 2,9
Dielectric loss factor tg 0,017
Breakdown voltage kV/mm 17
Surface resistance Ω 10 14
Specific resistance Ω.cm >10 13

Product uses

Processing options

You can easily process the red tinted acrylic sheet by drilling, bending (hot), milling, engraving, glueing, polishing or sawing.

Applications

The Tinted acrylic sheet red 3 mm  is very suitable for secondary glazing. Tinted acrylic sheet is also widely used in windbreaks.

Frequently Asked Questions

  • This is a moulded acrylic sheet. These types of acrylic sheet are stress-free, making them suitable for operations such as sawing, drilling, milling and (hot) bending. ---
  • In order to easily calculate which acrylic sheet is most suitable for your application, we have developed the thickness calculator aid. Choose a vertical or horizontal installation and look up the length and width that you have in mind in the table. Then you have the thickness that you need. No legal rights can be derived from the thickness calculator aid so if you want to be sure that you have selected the correct thickness, then please contact us for advice.
  • This acrylic sheet is resistant to temperatures up to 70 degrees Celsius.

Are you wondering whether the Tinted acrylic sheet red 3 mm is suitable for your project? Then order a sample. Then you can take your time to consider it, without having to order a whole sheet.
