Spatter protection for sink in caravan
Submitted byGuido
Guido faced a frustrating issue in his caravan: water from the sink would constantly splash onto the bed. To tackle this, he created a practical splashback using opal acrylic glass, which is 8mm thick. The result? A sleek partition that not only keeps the water off the bed but also looks fantastic.
The project

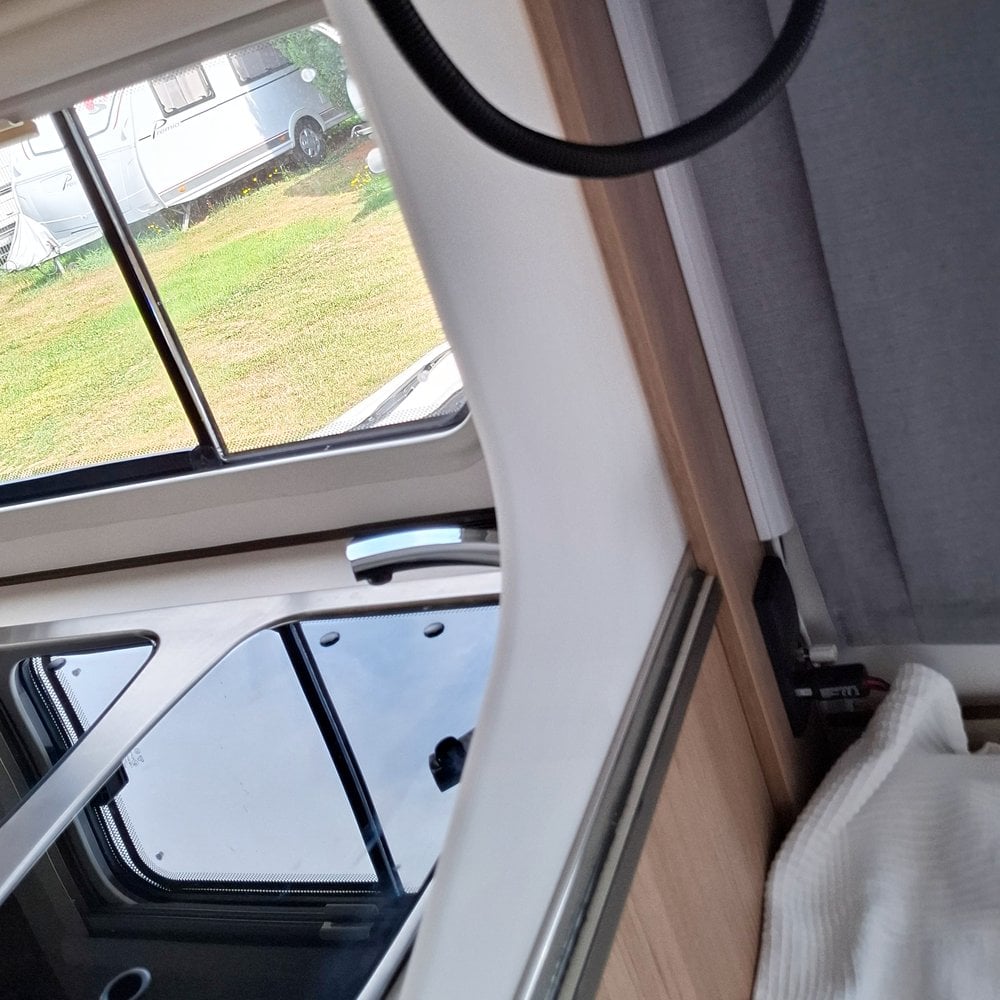

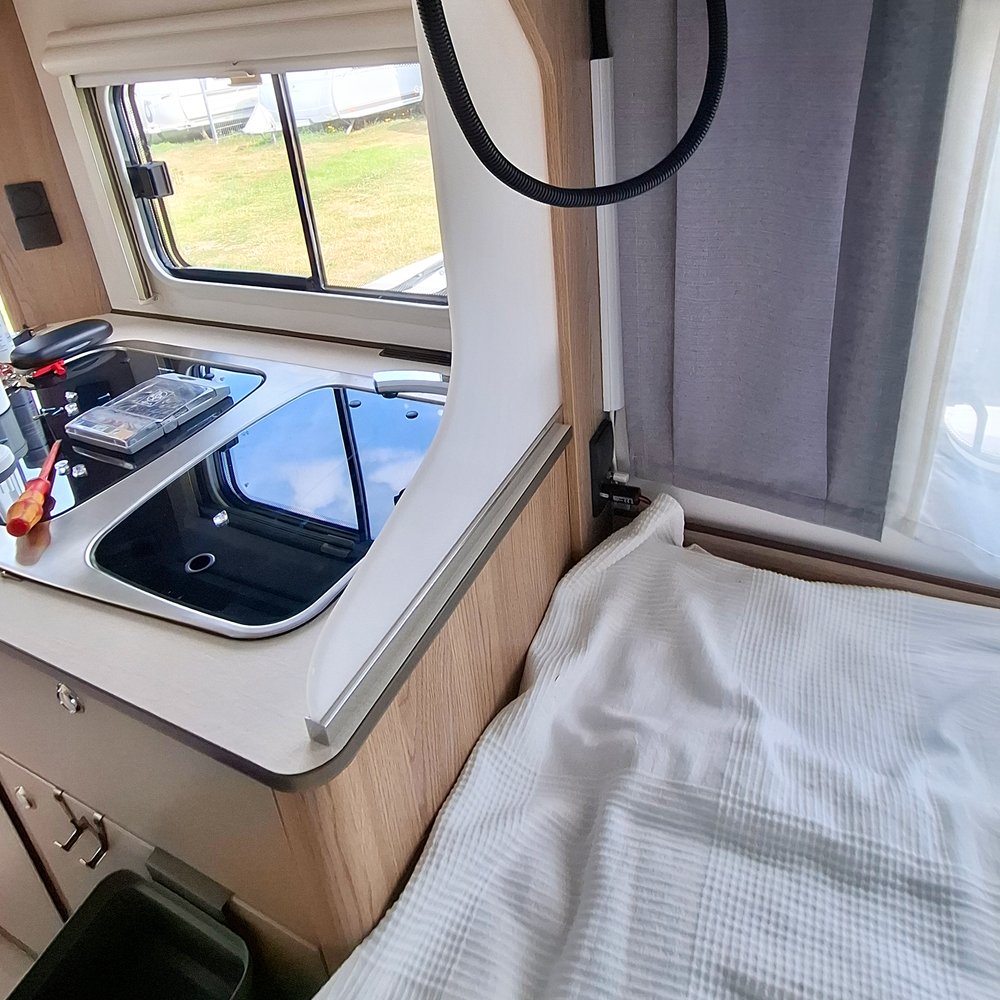

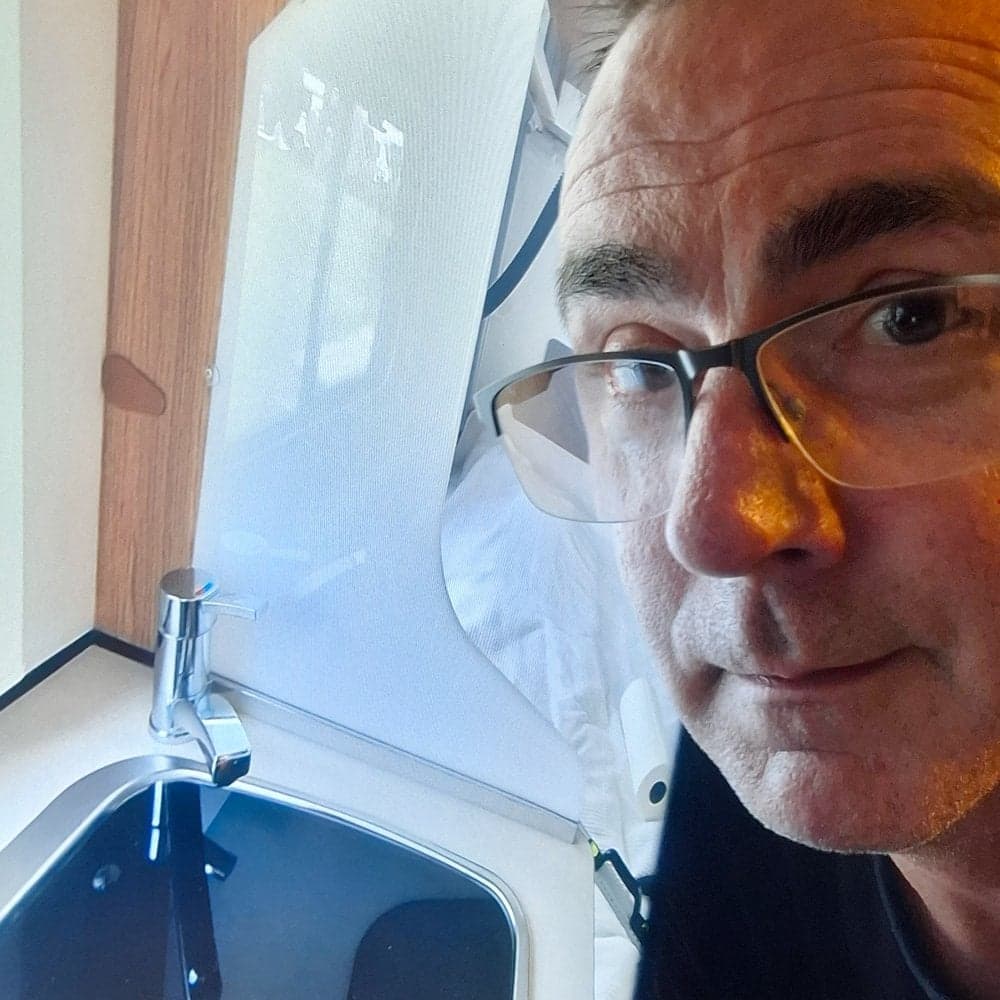

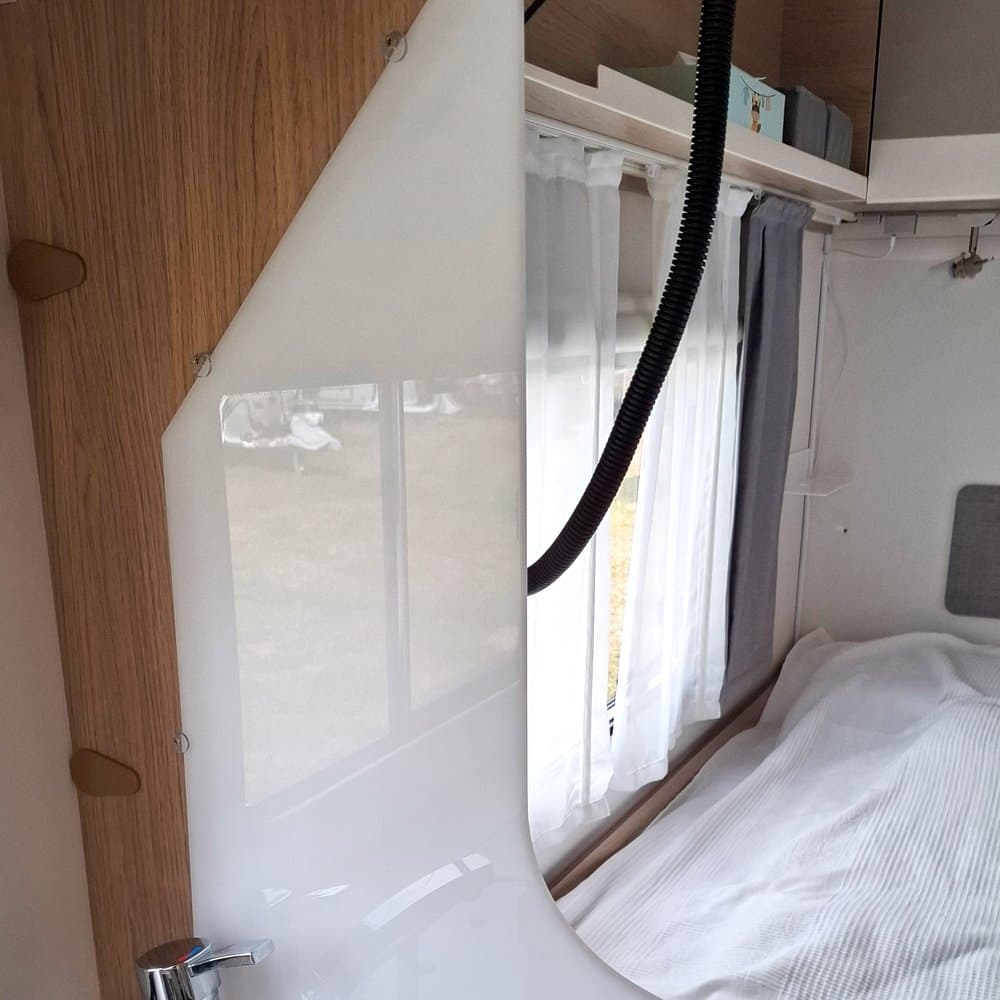

Guido installed a clear partition on the worktop in his caravan. The acrylic panel ensures that splashes from the sink no longer make their way onto the bed. The panel was secured using a glass connection profile, along with additional glass holders to provide extra stability. It’s a straight forward yet effective solution to a common problem.
Step-by-step guide
1
Create a template
Start by accurately measuring your sink area. Use a piece of cardboard to create a template that reflects the correct shape. This will ensure a perfect fit for your partition.
2
Order acrylic
Order an opal acrylic panel, cut to size. Opt for a thickness of 8mm, and make sure to include an extra 1-2cm for the overhang. At PlasticSheetsShop, we offer fully customised acrylic sheets for a professional finish.
3
Smooth the edges
Sand the edges of the acrylic panel smoothly using 400-grit sandpaper. For the finishing touch, use a scraping tool to remove any sharp edges.
4

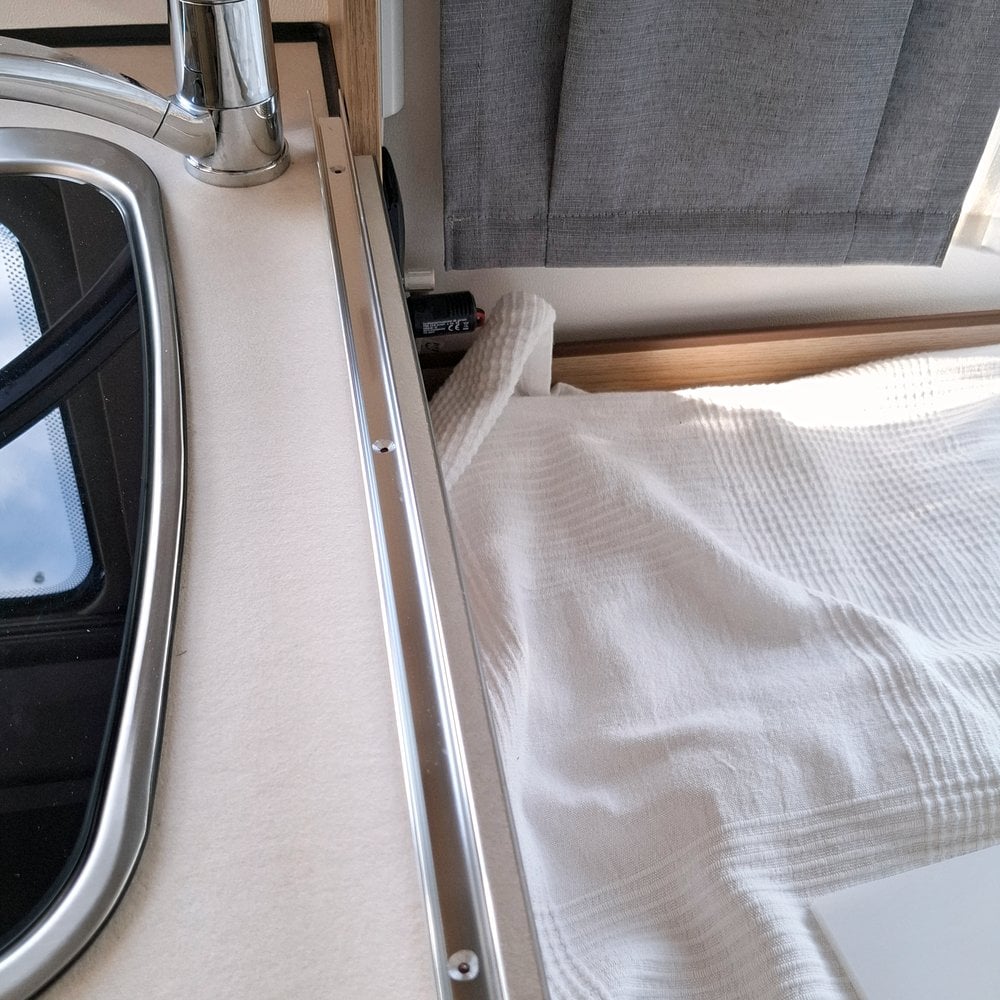

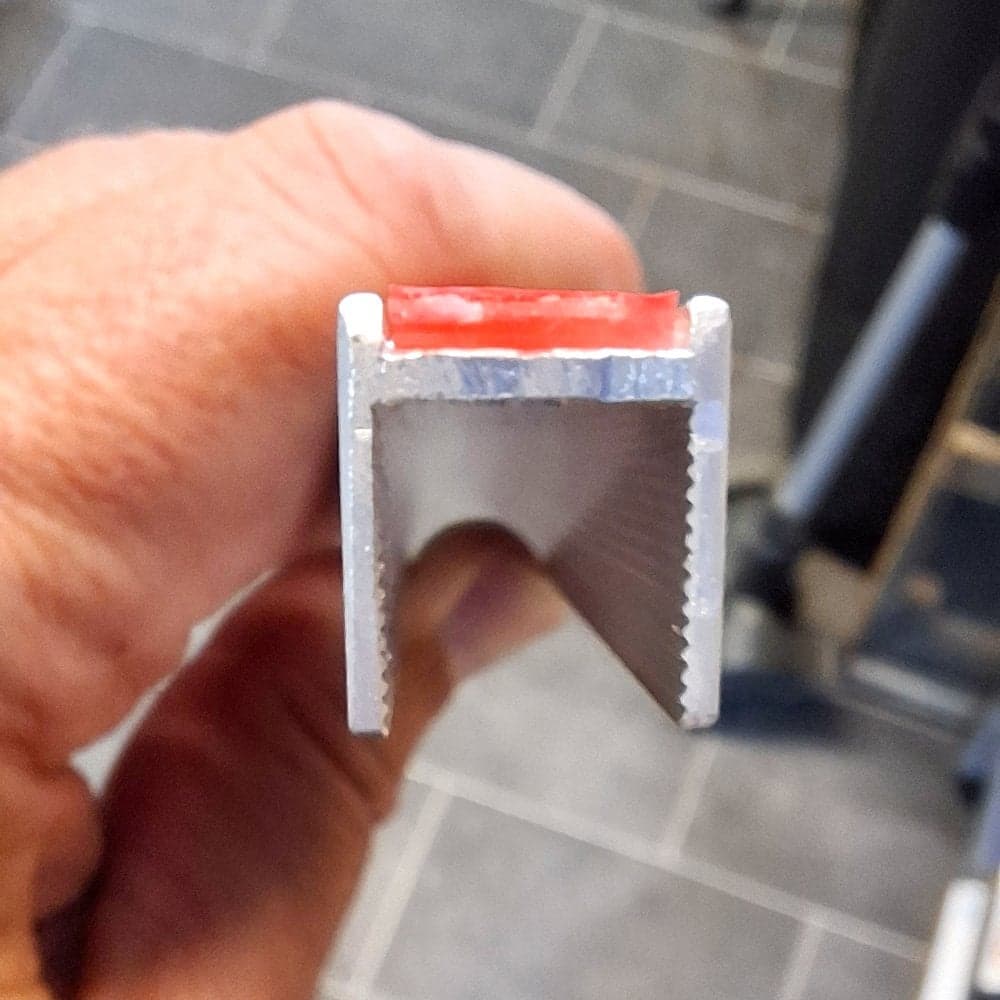

Install the connection profile
Drill holes for the screws and fix a chrome connection profile onto the worktop. For this, use 2x20mm white screws to keep the profile firmly in place.
5

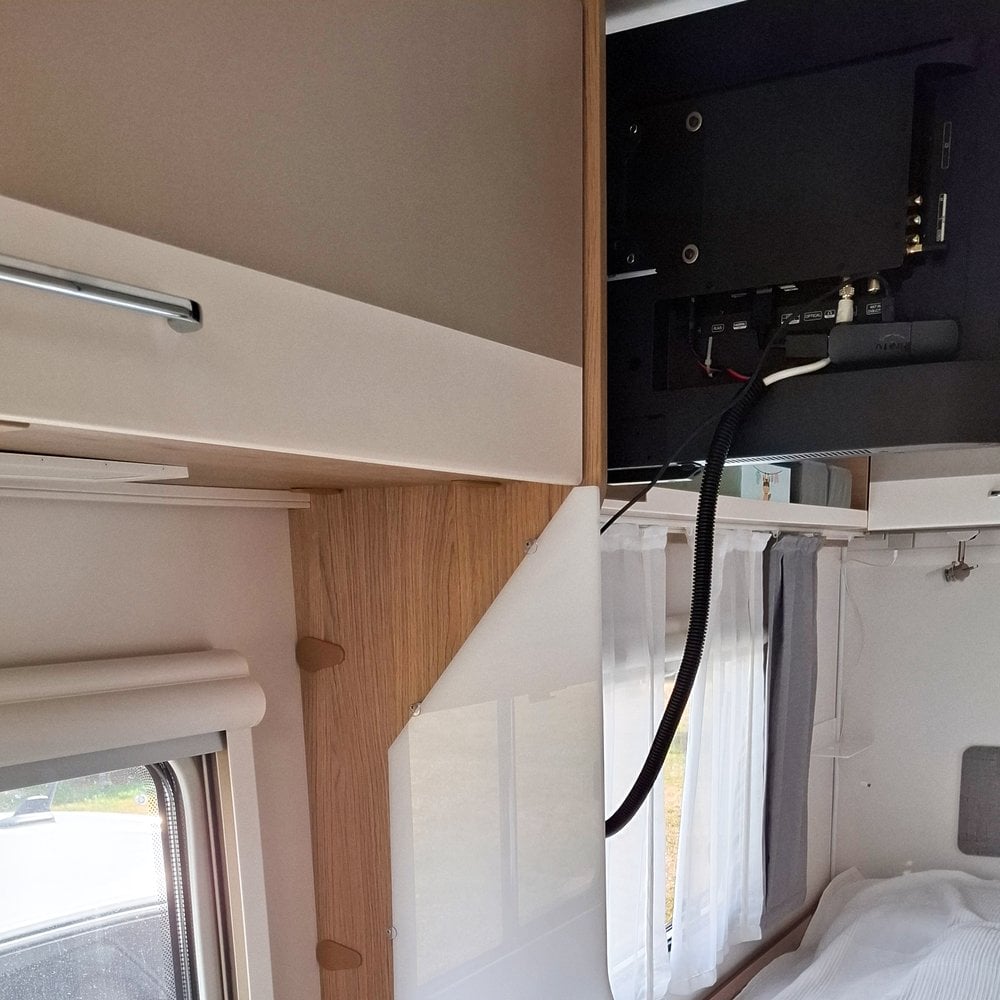

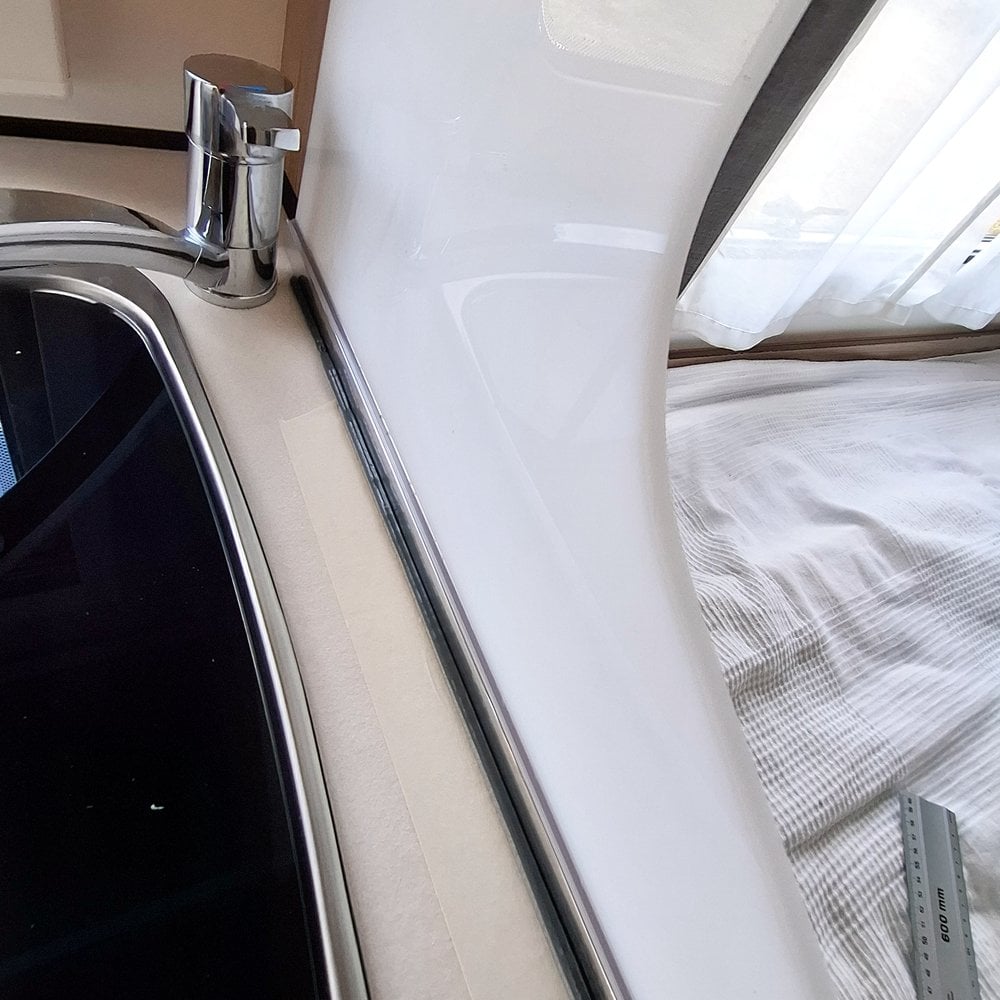

Attach the panel
Slide the acrylic panel into the chrome profile and secure it further by adding glass holders for extra stability. Finish the installation with sanitary sealant and double-sided tape where needed.
Supplies

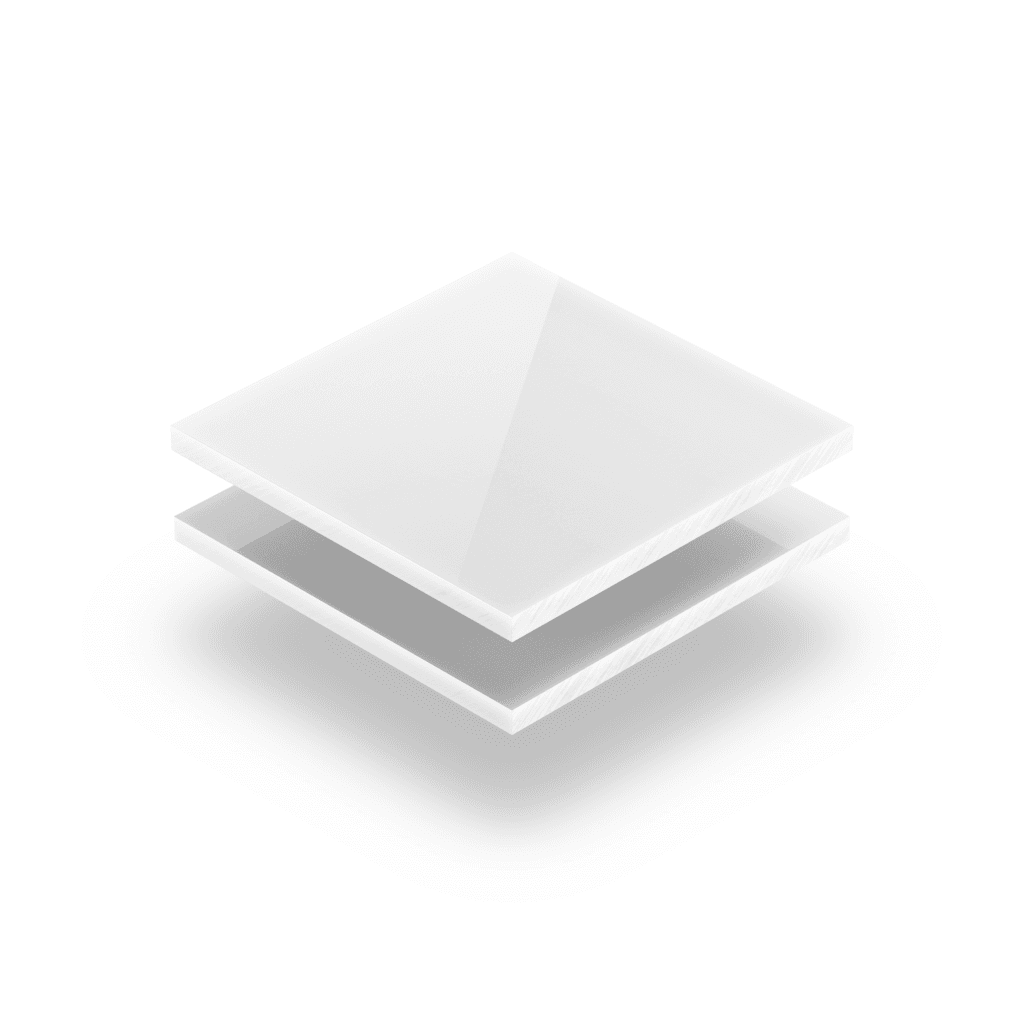

White opal cast (GS) acrylic sheet 8 mm
White opal cast (GS) acrylic sheet 8 mm
Tools required
- Drill and bits
- Countersink bit
- 400-grit sandpaper
- Scraping tool
- Washing-up liquid
- Sealant spatula

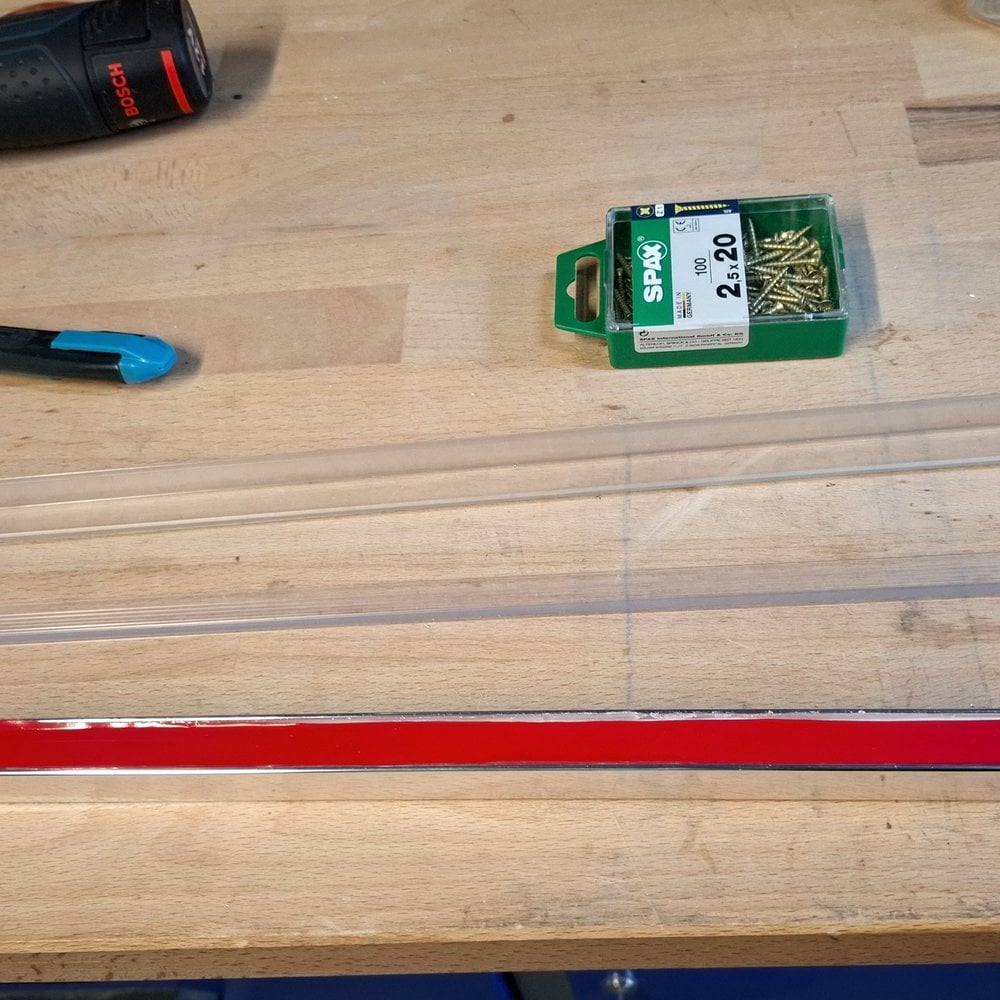

Other materials used

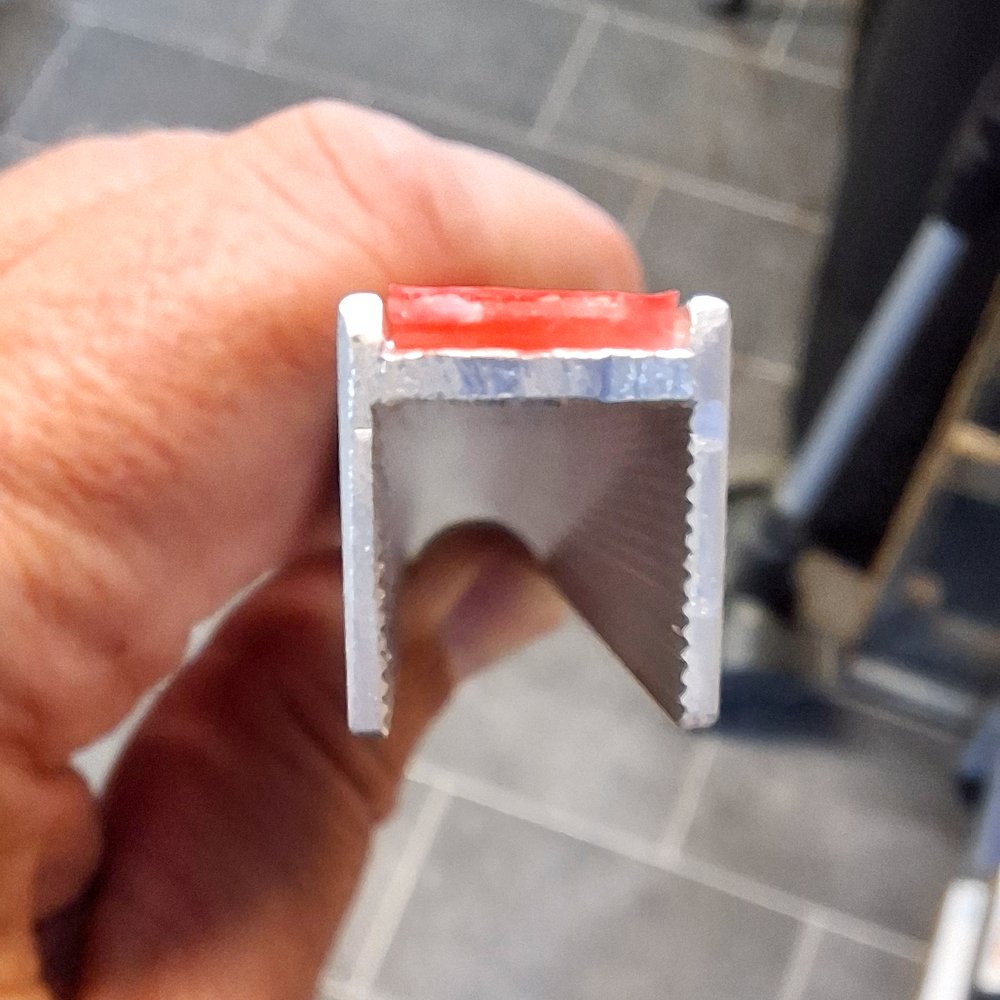

- Chrome connection profile for 8mm glass
- Glass holders

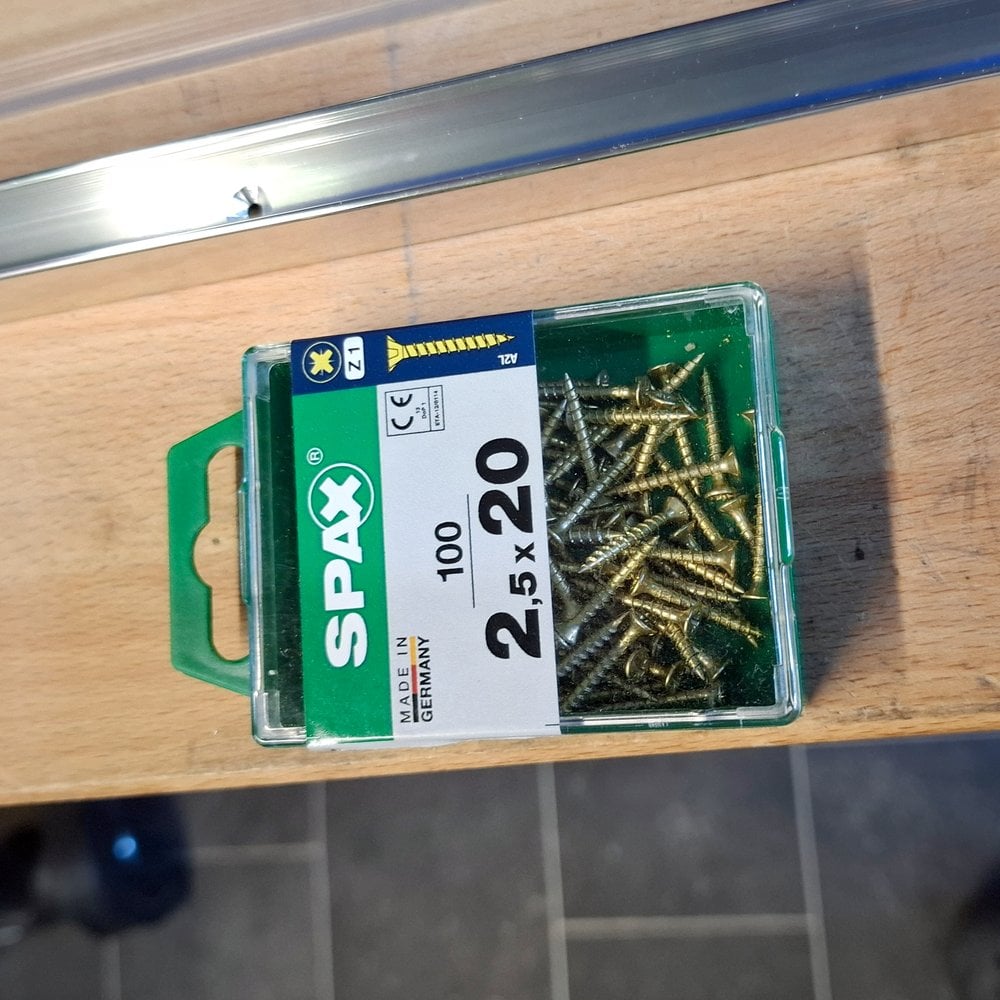

- 2x20mm white screws
- Double-sided tape
- Anthracite sealant
Guido's tips
Make an accurate template - it’s best done using cardboard. Include a 1-2cm overhang for proper coverage. Take your time to sand the panel for smooth edges.
Guido's tips
Make an accurate template - it’s best done using cardboard. Include a 1-2cm overhang for proper coverage. Take your time to sand the panel for smooth edges.
