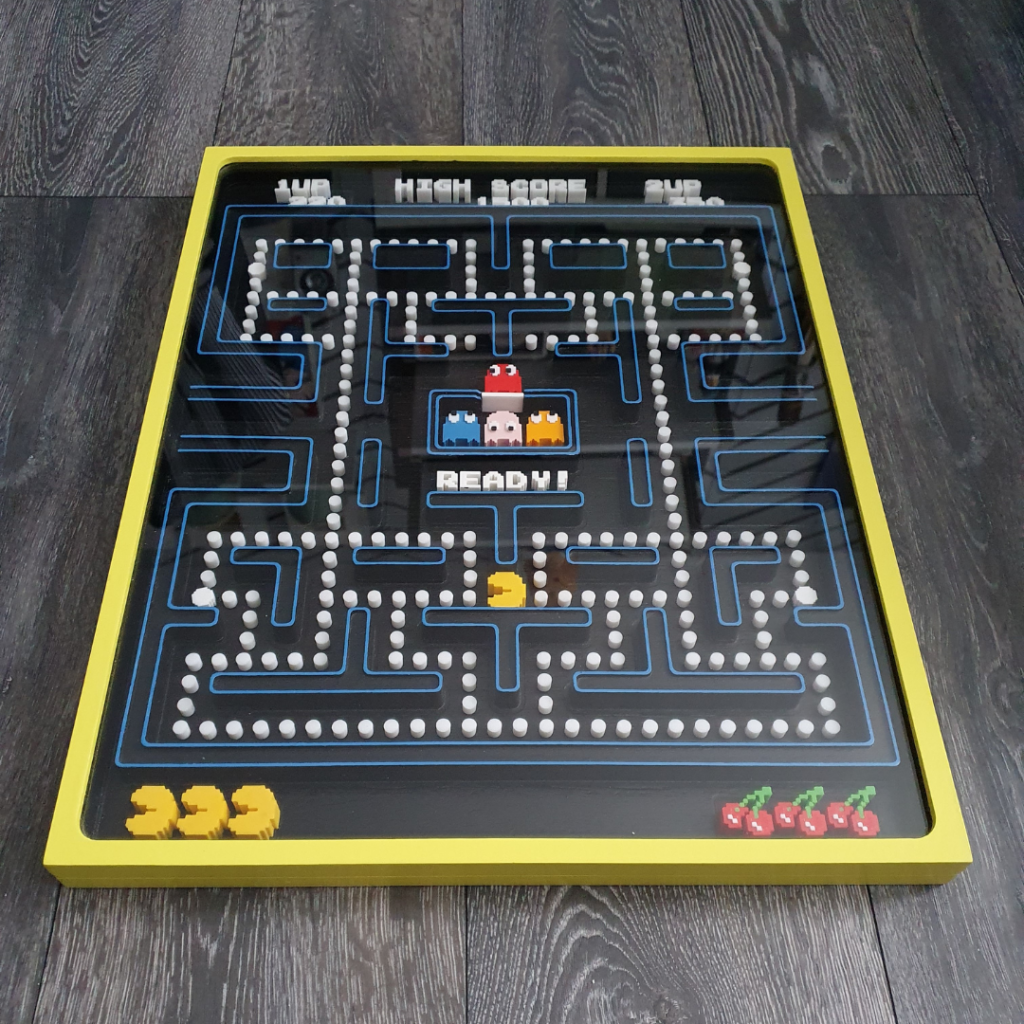

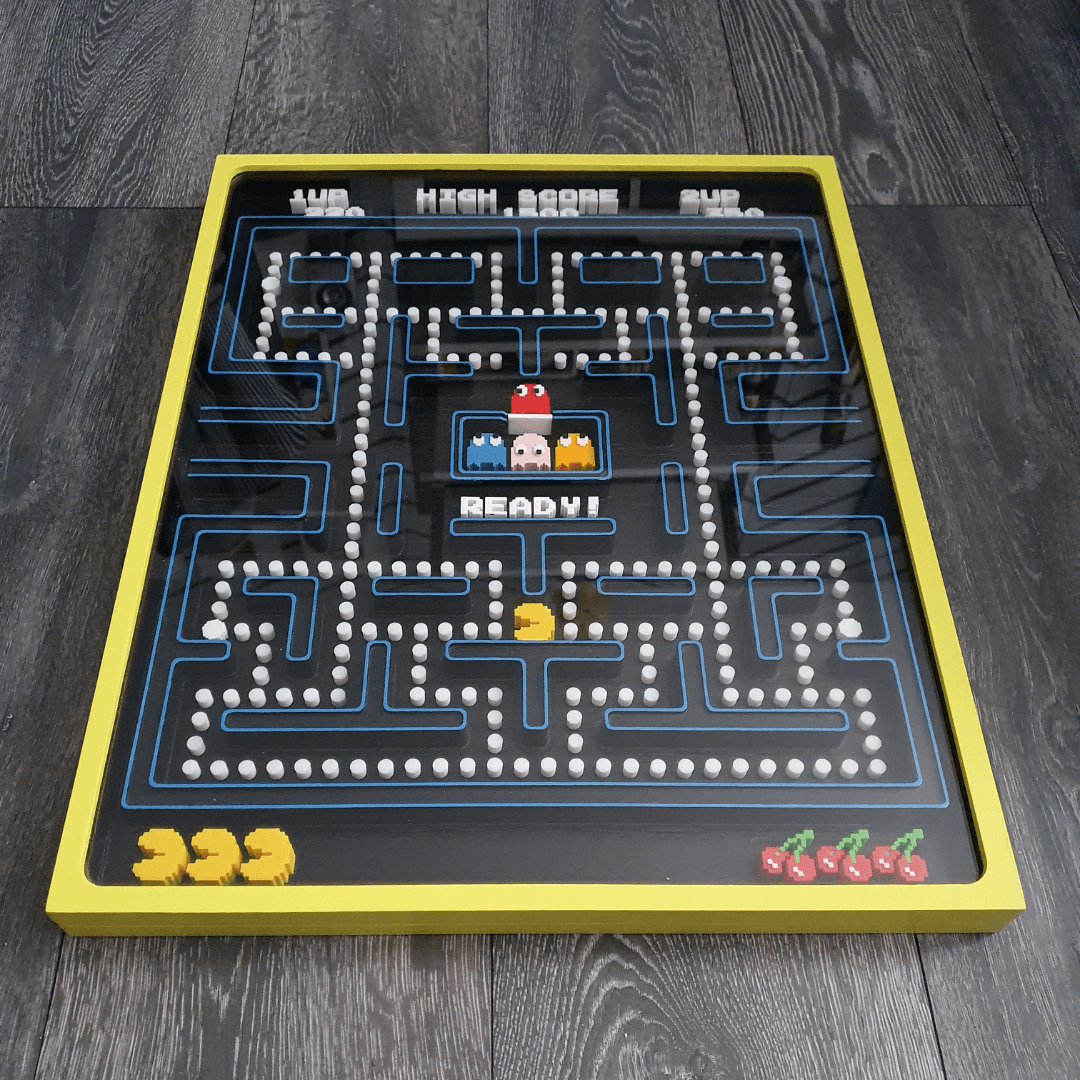

Franklin has crafted an impressive Pac-Man diorama using acrylic, a 3D printer, and a CNC router. This diorama not only offers a playful representation of the classic game but is also robust and stylish thanks to the acrylic sheet that protects the project while giving it a modern look. With smart choices and careful planning, Franklin has created a visually appealing piece of art.
The project

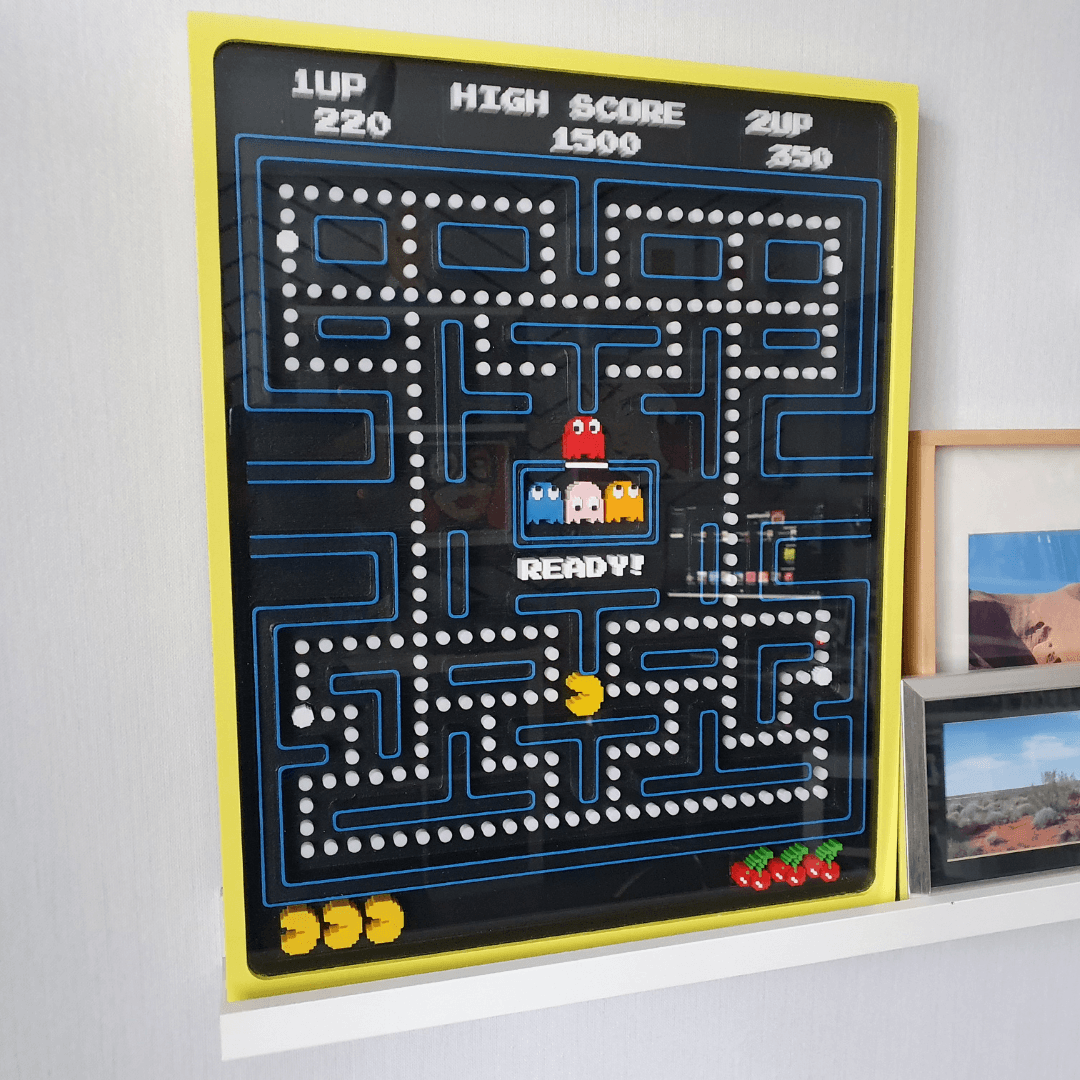

Franklin built a diorama that brings the classic Pac-Man game to life. He used plywood for the game and frame, cutting it with a CNC machine, and added detailed figures that he printed using a 3D printer. Finished with paint in the authentic Pac-Man colours and a protective acrylic sheet, the project is complete. Franklin shares, “I’m really pleased with the final result!”
Step-by-step guide
steps
-
Plan
Get started by planning your entire project. Ensure everything is thoroughly thought out before you begin.
-
Cut

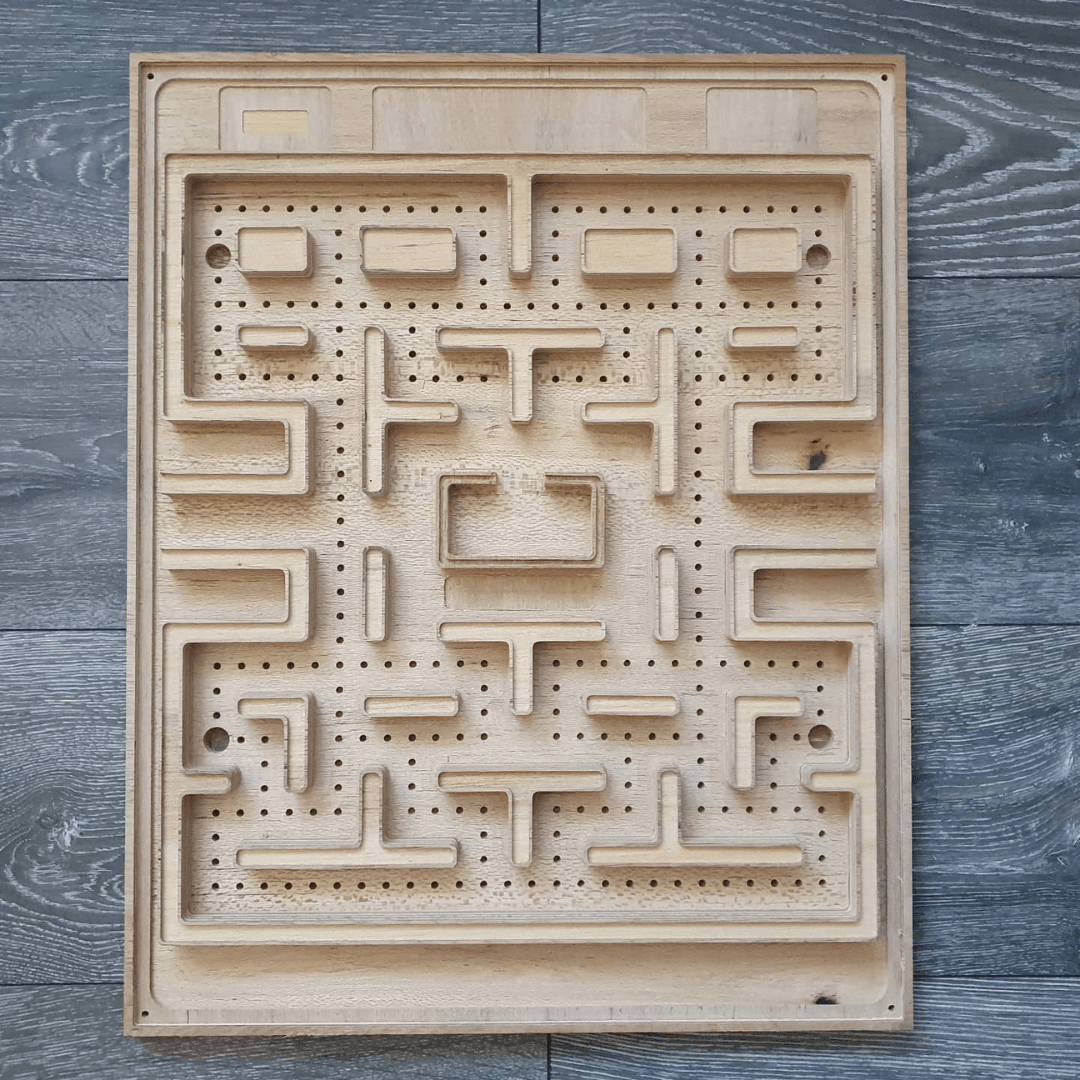

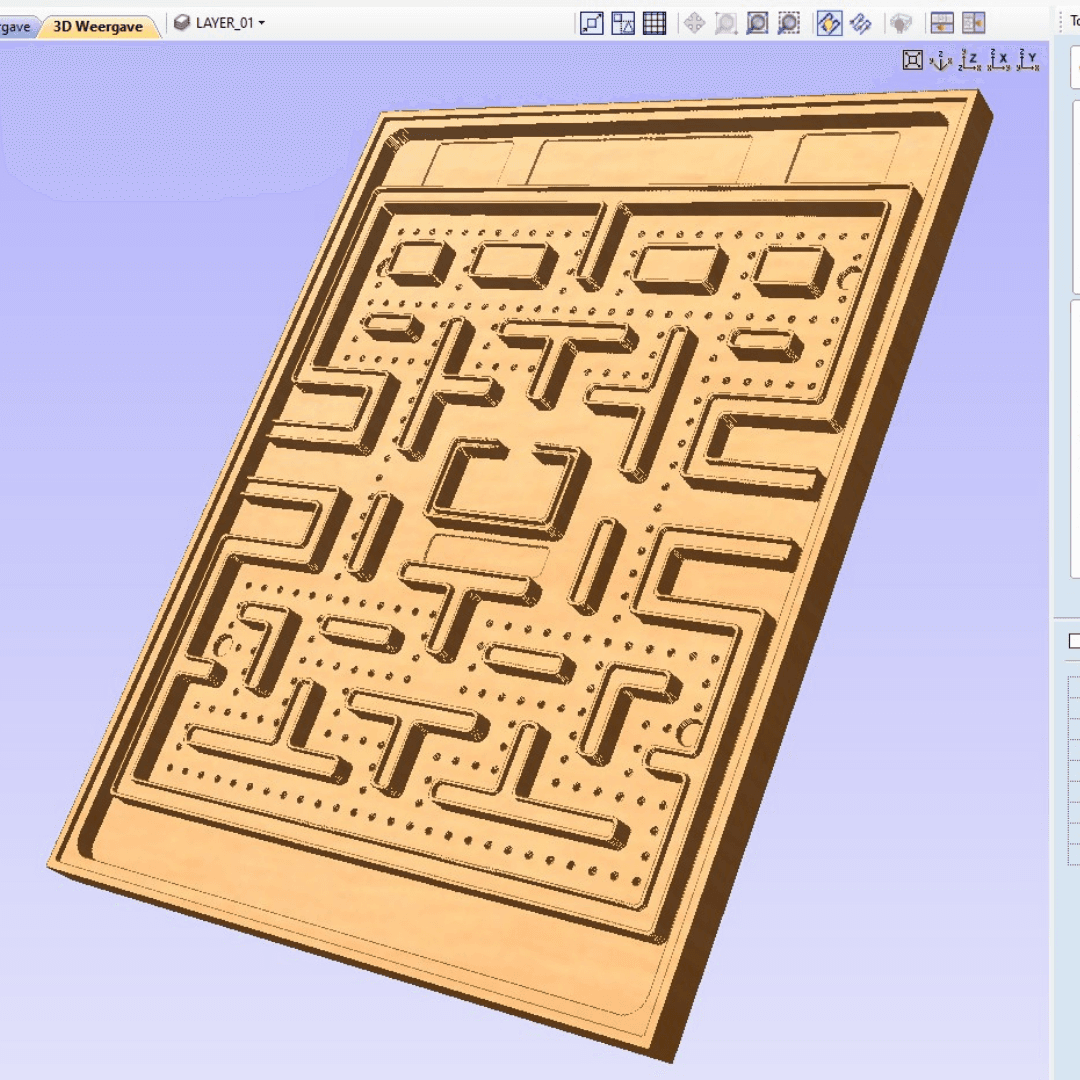

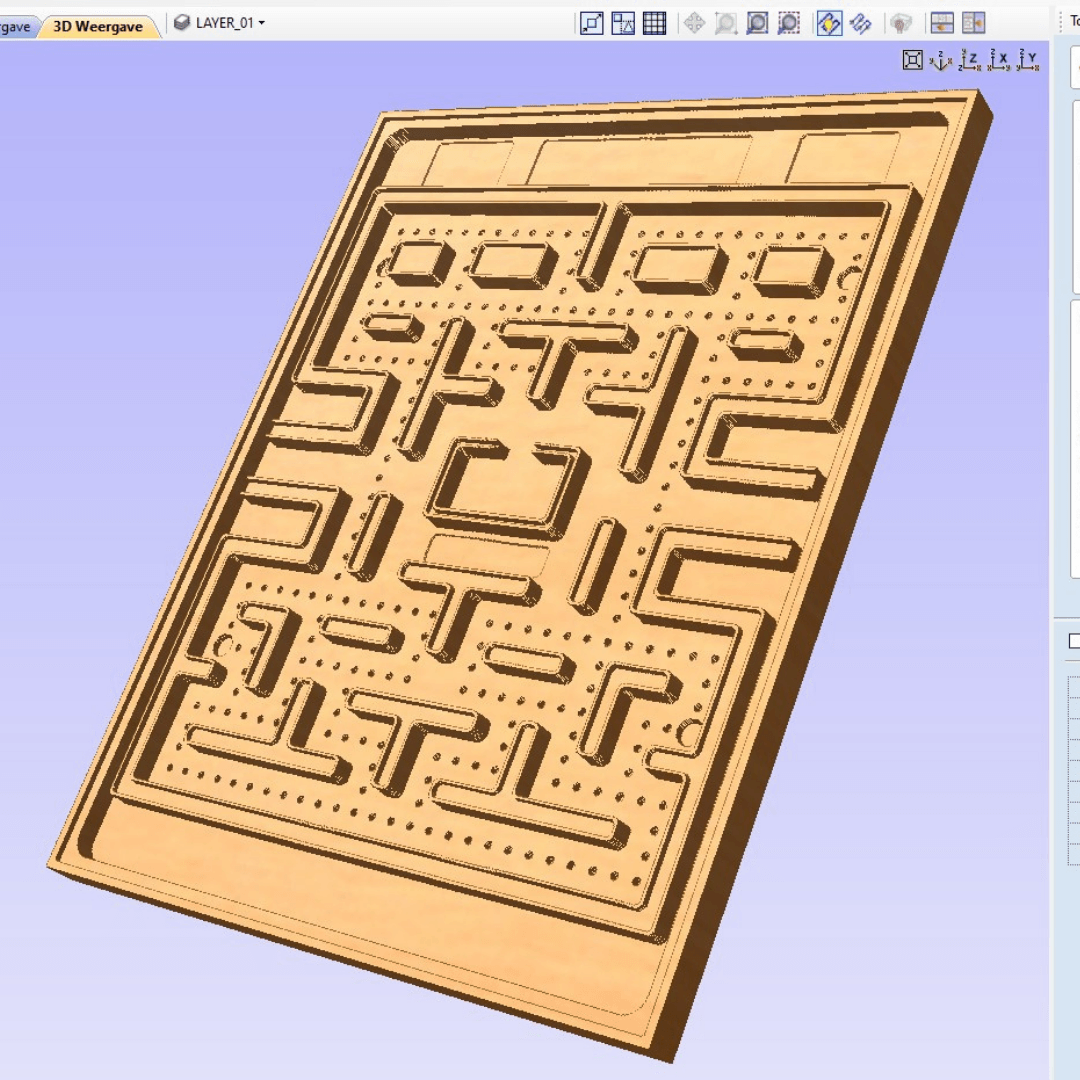

Use a CNC router to cut the game and frame from plywood.
-
Assemble

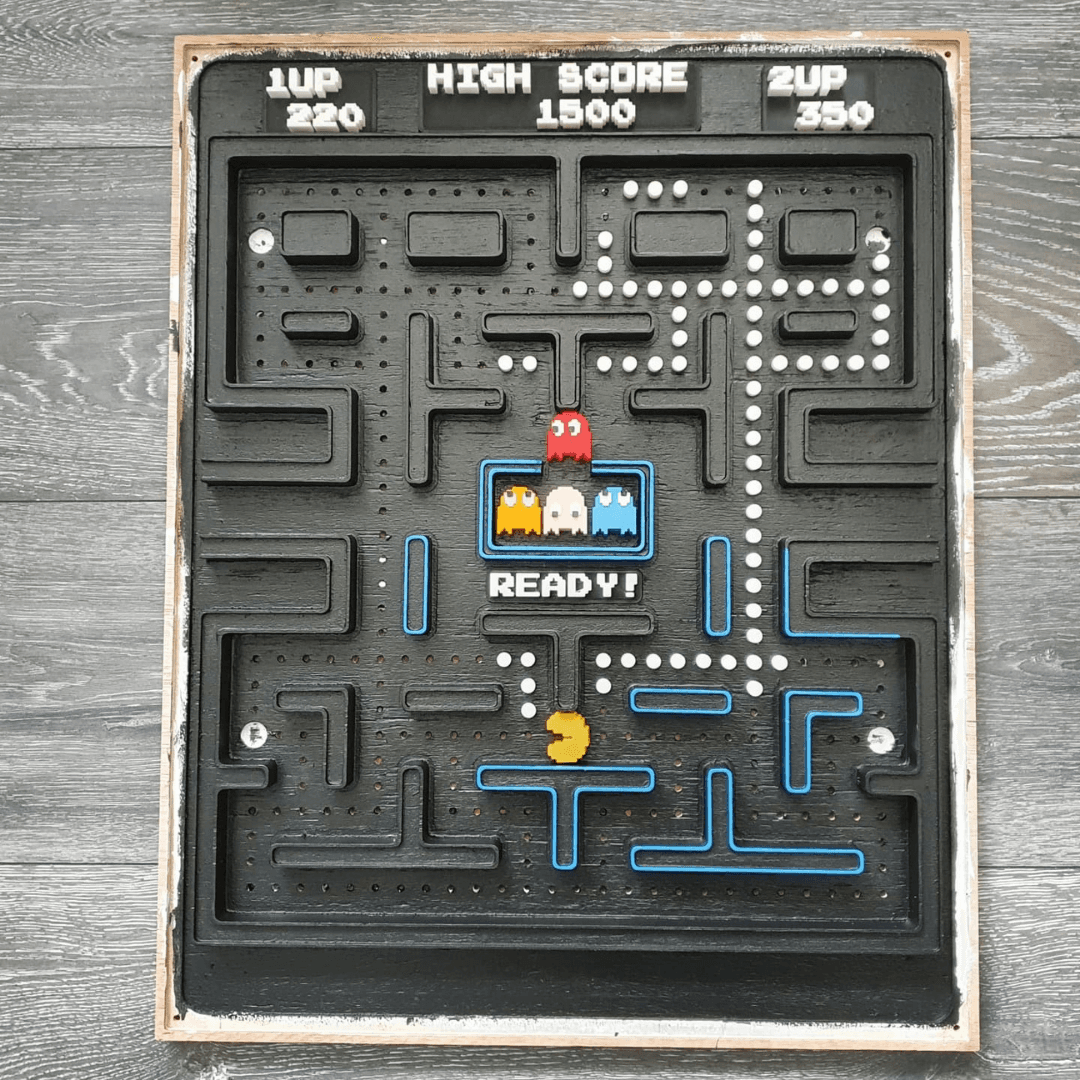

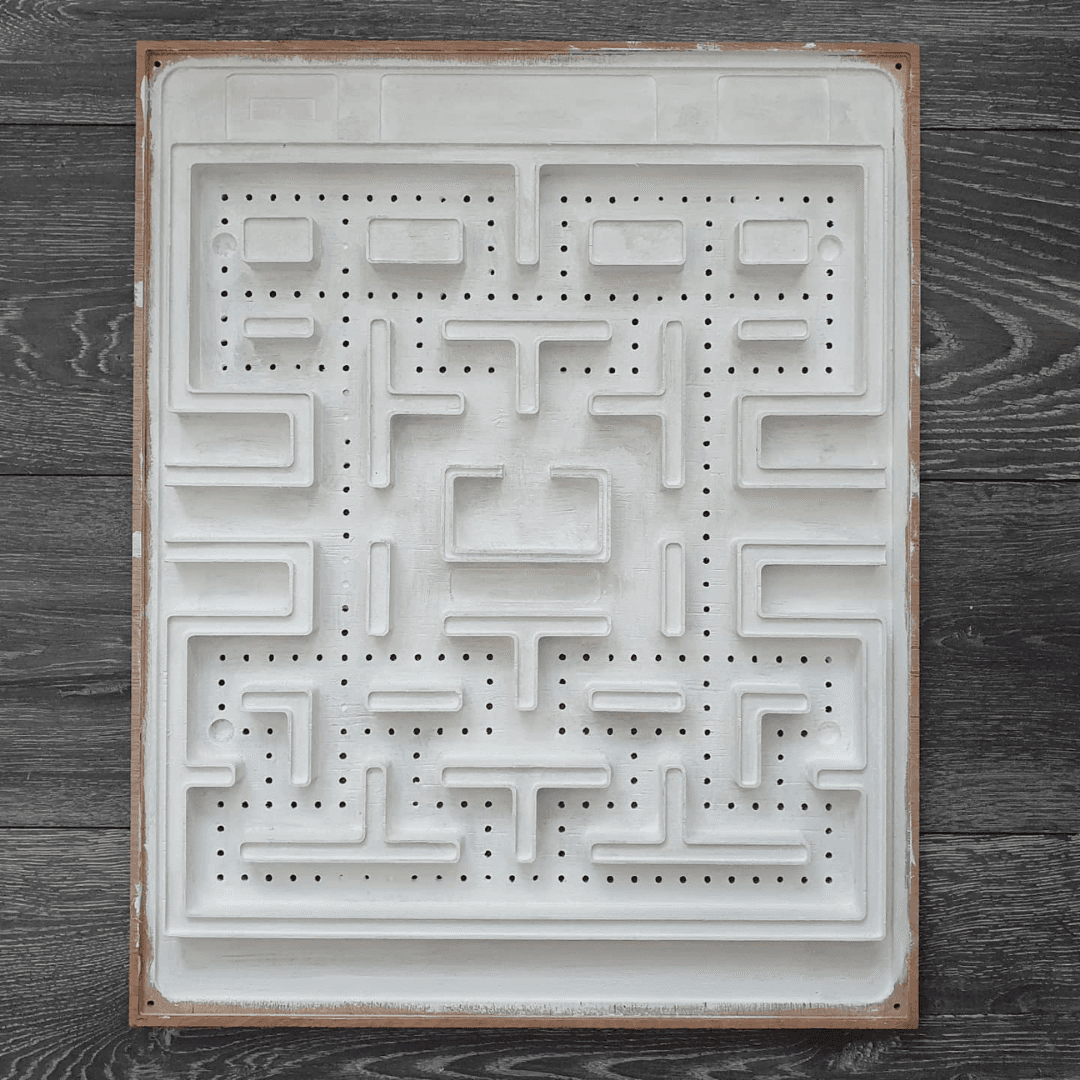

Put together the cut wood and paint it in Pac-Man colours for the right look.
-
Print

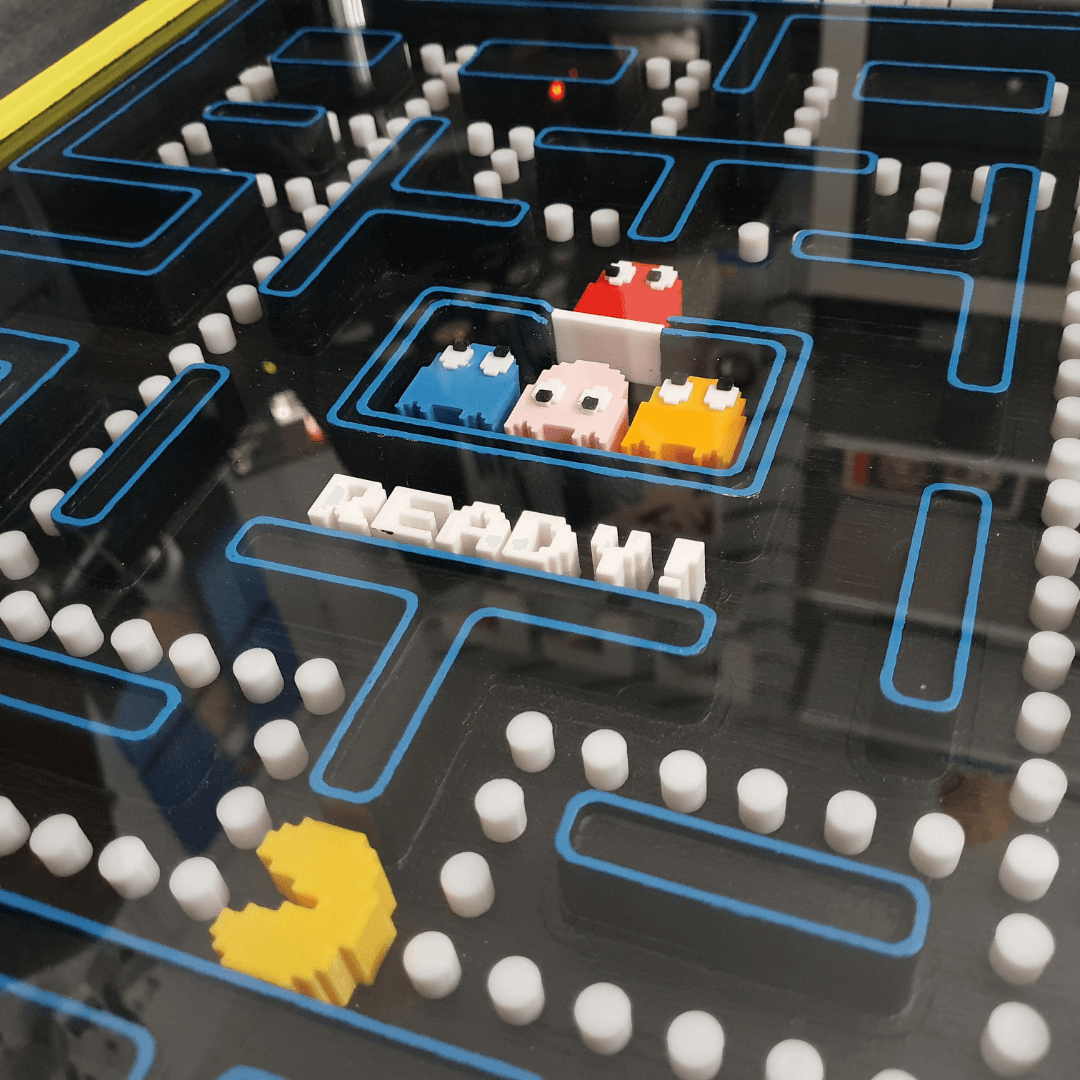

Print figures, text, and numbers with a 3D printer and add them to the diorama.
-
Attach

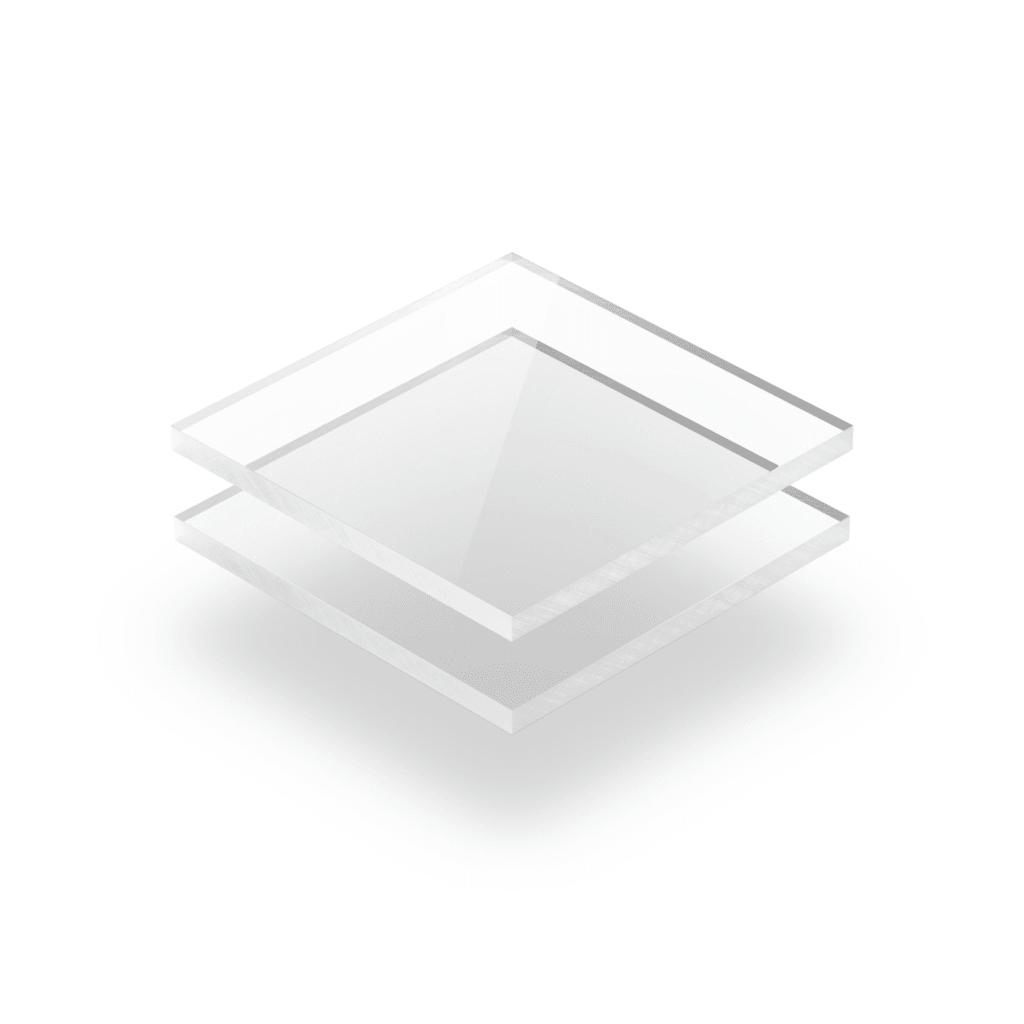

Attach an acrylic sheet to the front for protection and a neat finish.
Materials and tools used
Additional materials
Tools
Tip from Franklin
“Think through the project beforehand and look up information and examples online! Sometimes, others have done a similar project and have useful tips to share.”
